Size for Universal Silicone Hose, Short Pipe and Hose Clamps

Universal Silicone Hose

Product
ID (inch)
ID (mm)
Remarks

Straight Silicone Coupler....
5/16"
8mm
  • 4mm wall thickness
  • 3ply polyester
  • standard blue color
  • Length=76mm

**Note: 1 Meter length hose is available
7/16"
11mm
5/8"
16mm
3/4"
19mm
7/8"
22mm
1"
25mm
1-3/8"
34mm
1.5"
38mm
1.75"
45mm
2"
51mm
2.25"
57mm
2-3/8"
60mm
2.5"
64mm
2.75"
70mm
3"
76mm
3.3"
80mm
3-1/8"
84mm
3.5"
89mm
4"
102mm
4.5"
114mm
Straight Silicone Reducer
1.5" > 2"
38>51mm
  • 4mm wall thickness
  • 3ply polyester
  • standard blue color
  • Length=85mm
1.75" > 2"
45>51mm
2-3/8" > 2"
60>51mm
2.5" > 2"
64>51mm
2" > 2.75"
70>51mm
3" > 2"
76>51mm
2.5" > 2.25"
64>57mm
2-3/8" > 2.75"
60>70mm
2-3/8" > 3"
60>76mm
2.5" > 3"
64>76mm
2.5" > 2.75"
64>70mm
2.75" > 3"
70>76mm
2.75" > 3-1/8"
70>80mm
3-1/8" > 3.5"
80>89mm
3" > 4"
76 > 102m
90 Degree Elbow Reducer
1.75" >2.125"
44>54mm
  • 4mm wall thickness
  • 3ply polyester
  • standard blue color
  • Leglength=80mm
2-3/8" > 2"
60>51mm
2.5" > 2"
64>51mm
2" > 3"
51>76mm
2.5" > 3"
64>76mm
1.5" > 2"
38>51mm
2.75">3"
70>76mm
3" > 4"
76>102mm
45 Degree Elbow Reducer
2 "> 1.5"
51>38mm
  • 4mm wall thickness
  • 3ply polyester
  • standard blue color
  • Length=85mm
2.5" > 2"
64>51mm
2.5" >3"
64>76mm
2-3/8" > 2"
60>51mm
2.75" > 3-1/8"
70>80mm
3" > 4"
76>102mm
45 / 90 / 135 Degree
Elbow Silicone Hose
1"
25mm
  • Angle: 45 / 90 / 135 degree
  • 4mm wall thickness
  • 3ply polyester
  • standard blue color
  • Leglength = 75mm
1.5"
38mm
1.75"
45mm
2"
51mm
2.25"
57mm
2-3/8"
60mm
2.5"
64mm
2.75"
70mm
3"
76mm
3-1/8"
80mm
3.5"
89mm
4"
102mm
4.5"
114mm

Centre Line Distance
Remarks
U-Shape Elbow Hose
1"
24mm
100mm
  • 4mm wall thickness
  • 3ply polyester
  • standard blue color
1.5"
38mm
114mm
1.75"
44mm
136mm
1.875"
48mm
144mm
2"
51mm
152mm
2.25"
57mm
170mm
2.375"
60mm
180mm
2.5"
64mm
190mm
Hump Silicone Hose
2 "
51mm
  • 4mm wall thickness
  • 3ply polyester
  • standard blue color
  • Length=76mm
2-3/8"
60mm
2.5"
64mm
2.75"
70mm
3"
76mm
3-1/8"
80mm
3.5"
89mm
4"
102mm
4.5"
114mm
T-piece Silicone Hose
2"
51mm
  • 4mm wall thickness
  • 3ply polyester
  • standard blue color
  • Length = 100mm
  • Spout ID = 25mm
2.375"
60mm
2.5"
64mm
2.75"
70mm
3"
76mm

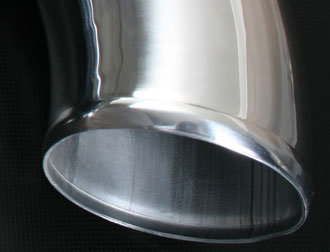

Aluminum Short Pipe

.

Product
ID (inch)
ID (mm)
Total Length

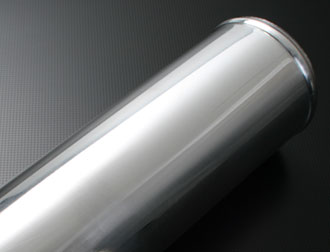

........Straight Pipe............
1.5"
38mm
30cm
2"
51mm
30cm
2.25"
57mm
30cm
2.5"
64mm
30cm
2.75"
70mm
30cm
3"
76mm
30cm
3.5"
89mm
30cm
4"
102mm
30cm
45 Degree Elbow Pipe
1.5"
38mm
30cm
2"
51mm
30cm
2.25"
57mm
30cm
2.5"
64mm
30cm
2.75"
70mm
30cm
3"
76mm
30cm
3.5"
89mm
40cm
4"
102mm
40cm

90 Degree Elbow Pipe
1.5"
38mm
30cm
2"
51mm
30cm
2.25"
57mm
30cm
2.5"
64mm
30cm
2.75"
70mm
30cm
3"
76mm
30cm
3.5"
89mm
40cm
4"
102mm
40cm

180 Degree Elbow Pipe
1.5กจ
38mm
30cm
2กจ
51mm
30cm
2.25"
57mm
30cm
2.5"
64mm
30cm
2.75"
70mm
30cm
3"
76mm
30cm
3.5"
89mm
40cm
4"
102mm
40cm

Stainless Steel Hose Clamps
Size (inch)
Size (mm)
Width (mm)
1" + 8mm
32 - 37mm
19
1.25" + 8mm
37 - 42mm
1.5" + 8mm
43 - 49mm
1.75 " + 8mm
47 - 55mm
2" + 8mm
54 - 62mm
2.25" + 8mm
60 - 68mm
2.5" + 8mm
67 - 75mm
2.75" + 8mm
73 - 81mm
3" + 8mm
79 - 87mm
3.25" + 8mm
86 - 94mm
3.5" + 8mm
92 - 100mm
